可移動式低壓控制手柄進行操作，操作電壓24V，安全穩定?？蓴[動裝配圓盤和擺動裝配勾的通

  用裝配臂，適用于14"-26"全部輪輞尺寸。舉升臂和夾具均為液壓驅動，夾緊力無級調節。

  ● 技術參數

            輪輞直徑                           14"-26"

                           最大車輪重量                                       500kg

                           最大車輪寬度                                       780mm

                           最大輪胎直徑                                       1600mm

                           液壓動力單元                                       1.5kW 380V-3Ph(220V可選)

                           齒輪箱電機                                           1.8kW 380v-3Ph(220V可選)

                           胎邊壓力                                               2500kg

                           移動控制手柄電壓                                 24V

                           設備凈重                                               570kg

                           設備占地面積                                        2500×2000mm

                           電壓                                                      220V/400V 50/60Hz 1P/3P(可選)

                           設備毛重                                               647kg

                           包裝尺寸 (長×寬×高)                          2030×1590×1000(mm)

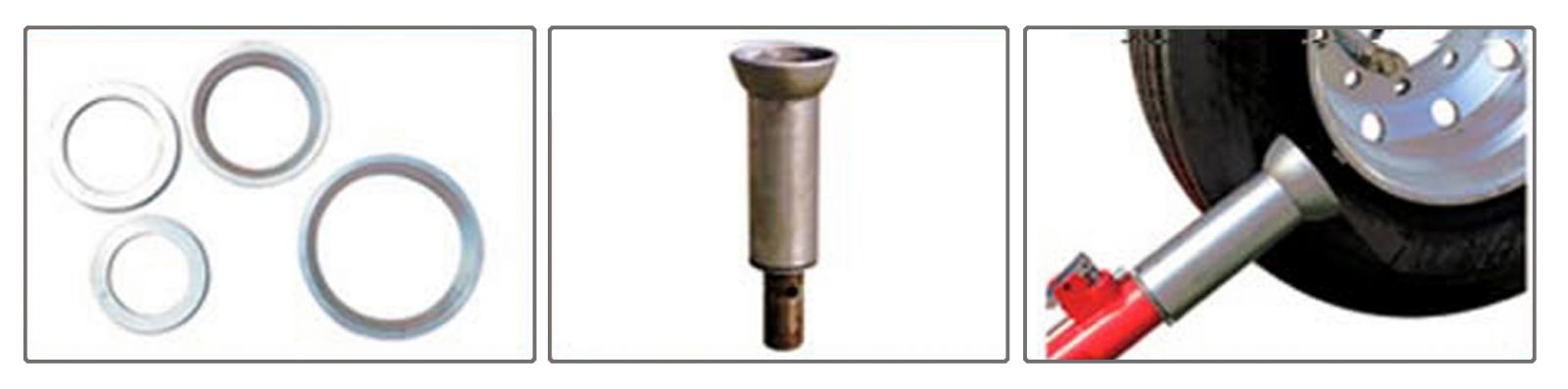

    ● 可選配件

 鋁合金輪輞保護套

              鋁合金輪輞保護圈                                                                          真空胎壓滾
   ● 標準配件
