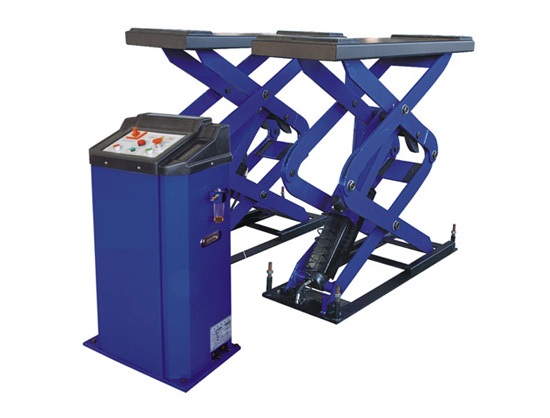

ZHZY-S35D
|
產品說明
|
技術參數Parameters:
1.型號Model:S-35D-1/ S-35D-2/ S-35D-3;
2.跑道長Runway Length:1510mm/1560mm~1750mm/1660mm~2040mm;
3.跑道寬Runway Width:600mm;
4.最低高度Min. Height:330mm;
5.最高高度Max. Height:1990mm;
6.上升時間Rising Time:50~60Sec;
7.舉升重量Lifting Weight:3200Kg;
8.凈重Net Weight:700Kg/750Kg/800Kg;
9.輸入電壓Input Voltage:3P 380V,50Hz / 1P 220V,50Hz;
10.功率Power:3HP/2.2Kw。
|
