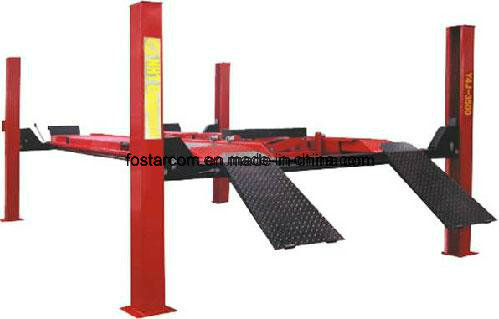

          ZHZY-JCY401
          Loading...

          主要技術參數:
          Main Specifications and Technical Parameters:
          最大舉升重量(kg)Max. weight
              3500、4000kg、5000 kg
          一次舉升高度(mm)Platform lifting height
                           1700mm
          二次舉升高度(mm)secondary lifting height
                           350mm
          電     源          Power
          220V-380V
          電機功率           Motor Power
              3500KG-2.2KW
              5000KG-3.0KW
          額定油壓            Rated oil pressure
                            18MPa
          整機重量(kg)     overall weight
          1200、1560kg
          注:根據用戶要求可供不同電壓和頻率產品(具體參數見設備標牌)
          *Note: According to user requirements for different voltage and frequency product (specific parameters see the equipment signs)

          特點簡介:
          1、采用電動、手動、氣動解鎖
          2、液壓動力單元配置節流裝置,可隨時調整下降速度
          3、液壓油缸驅動,鋼絲繩傳動,升降平穩安靜
          4、設置鋼絲繩控制安全鎖,具有鋼絲繩斷裂保護功能,操作更安全
          5、采用電動聯動鎖,八點鎖緊,操作方便
          6、可隨意鎖定在需要的高度進行作業,安全可靠
          7、跑到間距可調,適合不同輪距的車輛
          8、配有二次舉升機小車,可選用手動、氣動、液壓舉升
          Features
           1、Adopt the electric release ,manual and pneumatic release。
           2、Hydraulic power unit configuration throttling device ,they can always adjust the rate of decline .
           3 、Hydraulic cylinder  drive,rope drive ,quiet and smooth lifting .
           4、With wire control security lock,with a wire rope fractureprotection,operation safety.
           5、Adopt electrical release ,eight -point locking system,easy to operate.
           6、can be locked in the desired height of operation ,safety and reliability
           7、Runway spacing is adjustable for different wheel base vehicle
           8、With the second lift pulley
