Product Name: Ultra HD dual screen large display 42 inch 3D four wheel aligner
Product model: FOSTAR-300N
Place of Origin: China - Zhuhai
Software: using WIN7-64 bit genuine operating system, Lenovo computer
The software registration certificate and operation interface are as follows:

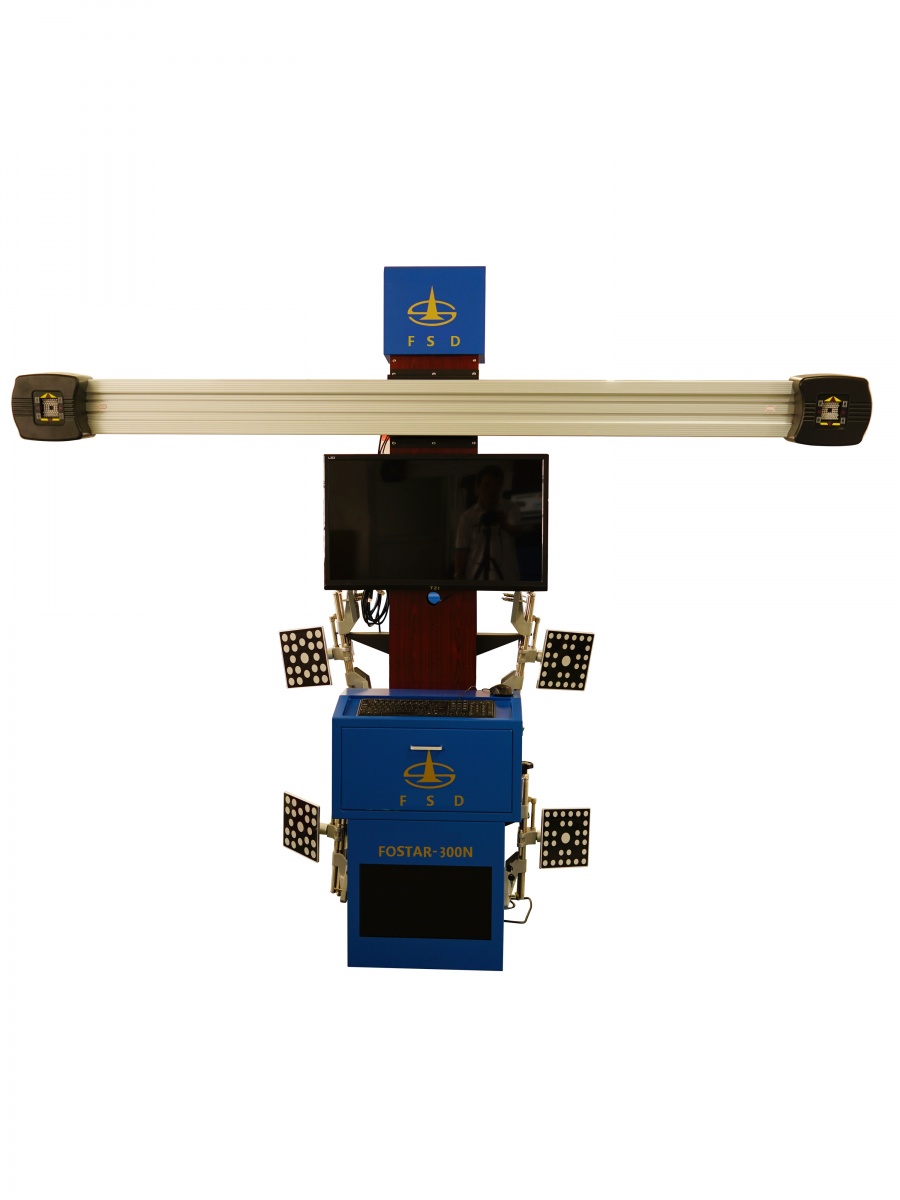

ur wheel alignment instrument; origin: Zhuhai: registered trademark: Zhuhai (FOSTAR-300N), the appearance of the product pictures are as follows: (the main blue cabinet, mahogany furniture color Aluminum Alloy column)


1 product features: the use of Aluminum Alloy party as column, surface oxidation of mahogany furniture color, Aluminum Alloy beam by oxidation Aluminum Alloy full integration, cabinet column fixed design, imported SONY camera, HDMI HD display data.It is FOSRAR-300M and the difference before and after the reflection panel pattern is different, need around the calibration panel, of course, after the factory calibration without calibration, the beam column in front of installation, the assembly method of only one person can complete. The operating system is not like the 300M model, WIN8, and its operating system is WIN7 genuine operating system, equipped with six languages, in which the default is Chinese, the operation is more simple.


• 2.Mian  technical parameters

Location parameter	Accuracy (center value)	Accuracy range	Maximum measuring range
Toe	±0.01°/0.01mm	Measurement repeatability±0.01°or0.01mm
Dip angle	±0.015°	±0.01°	±30°
Kingpin inclination	±0.025°	±0.01°	±30°
Kingpin inclination	±0.025°	±0.01°	±15°
thrust angle	±0.025°	±0.01°	±20°
Maximum turning angle	±0.015°	±0.01°	±6°
Recession angle	±0.015°	±0.01°	±30°
Tread	±0.015°	±0.01°	±6°
Wheelbase	±0.25cm	±0.01°	3000mm
diagonal	±0.25cm	±0.01°	8000mm
Rolling radius	±2mm	±0.3cm	12000mm
Location parameter	±2mm	±0.3cm	700mm


3．Standard accessories are as follows：

Product accessory name	Number of parts	Product accessory name	Number of parts	Remarks
Aluminum alloy Liang Zongcheng	1	Cabinet, column assembly	1
Aluminum alloy corner plate	2	Four point fixture	4
Direction fixing bracket	1	Front and rear wheel stop	4
Computer host	1	Monitor	2	42/18.5inch
Keyboard, mouse	1	Whole wire harness	1
Liang Zongcheng coupling	1	Column seat	1
Column cap	1	Fixture hanger	4

4 main features of the product

0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

0.3. Measurement accuracy in the industry first-class;

0.4. Software supports a variety of reflective patterns;

0.5. The product has passed ISO quality system certification and export CE certification;

0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do

0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

0.8. The software is easy to operate, easy to use, intuitive 3D display

0.9. National UNPROFOR, remote service system

10. All over the country are equipped with after-sales service outlets, remote technical support

11. Regular return visit system of products, continuous innovation, once a year free update data packets

12. The product is specially designed for the drainage design. It is convenient to check the data

13) free training staff

14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

15. Automatic calculation of body parameters and rolling compensation body parameters

16. Software intuitive response to the four round of the condition and need to solve the problem of repair

The above products need to complete the printer, notebook computer, non-standard display size, tablet PC for the selection of accessories
