1.
          fostar-300s
          Loading...

          Model: 3D fostar-300s
          Product Name: 3D four wheel aligner of fushida warring Eagle series;
          Origin: Zhuhai, China:
          Registered trademark: Firestar,
          Operating system: genuine win7-64 bit, 22 Mandarin optional, hardware Lenovo computer 64 bit genuine operating system, quality assurance.
          The column adopts electric lifting structure, the software has intelligent function, and can track the target plate,
          Optional: four point clamp is used for ordinary vehicle. It can detect and locate any tire.
          The product appearance pictures are as follows: (the main colors are red and blue)


          The cabinet adopts the movable case and the column is electrically raised and lowered; the camera adopts the Sony imported camera 5 million pixel lens system, with the processing speed of 30 pictures / second; the reflector shell is made of aerospace aluminum alloy material, with the dynamic vision algorithm technology, the software is easy to operate, and the data can be read quickly; the three-dimensional dynamic display image operation guide is used to guide the operation; the rolling compensation is short and micro distance Trolley, wheelbase difference, wheelbase difference, accurate test data, real-time monitoring of standard plate, 10-23 inch rims can be checked by standard four-point fixture, simple equipment maintenance and maintenance, no need for regular calibration; aluminum alloy corner wheel is convenient for checking parameters such as steering base parameters and front wheel toe angle; standard data base, free of charge, update the database file once a year; the product is recognized by ISO quality system and EU CE safety Card.

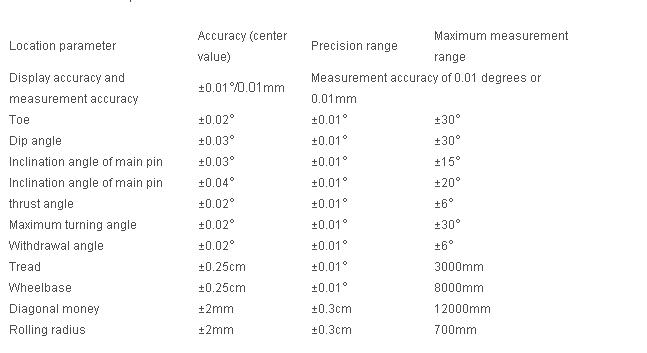

          The main technical parameters of the product are as follows:


          5. main features of the product
          0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

          0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

          0.3. Measurement accuracy in the industry first-class;

          0.4. Software supports a variety of reflective patterns;

          0.5. The product has passed ISO quality system certification and export CE certification;

          0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
          0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

          0.8. The software is easy to operate, easy to use, intuitive 3D display

          0.9. National UNPROFOR, remote service system

          10. All over the country are equipped with after-sales service outlets, remote technical support

          11. Regular return visit system of products, continuous innovation, once a year free update data packets

          12. The product is specially designed for the drainage design. It is convenient to check the data

          13) free training staff

          14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

          15. Automatic calculation of body parameters and rolling compensation body parameters

          16. Software intuitive response to the four round of the condition and need to solve the problem of repair
