          FOSTAR-300Y
          Loading...

          Model: 3D FOSTAR -300Y
          Name: V3D- FOSTAR -300Y-3D car wheel aligner;
          Place of Origin: China - Zhuhai
          Registered trademark: ZHZY (ZHZF),
          The software uses WIN7-64 bit operating system, Lenovo computer plus solid state hard disk;
          The software registration certificate and operation interface are as follows:

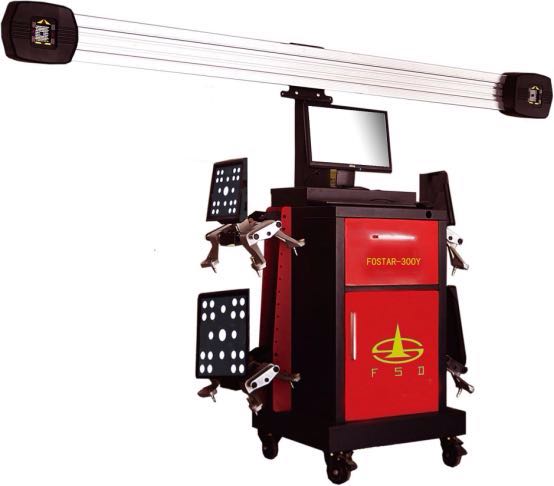

          the appearance of the product pictures are as follows: (the main colors are red, blue)

          • Product features: the cabinet adopts movable cabinet, convenient installation and low fixed Shidiao column height; the camera uses SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual algorithm technology, the software is easy to quickly read data; 3D dynamic image display operation guidance operation; rolling compensation, short wheelbase, micro distance trolley track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular calibration; Aluminum Alloy. Easy to check the angle of the direction of the base parameters and the front wheel angle and other parameters; super database, free of charge to update the database file once a year; the product through the ISO quality system and the EU CE safety certificationThe main technical parameters are as follows:
          Location parameter Accuracy (center value) Accuracy range Maximum measuring range
          Display accuracy and measurement accuracy ±0.01°/0.01mm Measurement repeatability±0.01°or0.01mm
          Toe ±0.015° ±0.01° ±30°
          Dip angle ±0.025° ±0.01° ±30°
          Kingpin inclination ±0.025° ±0.01° ±15°
          Kingpin inclination ±0.025° ±0.01° ±20°
          thrust angle ±0.015° ±0.01° ±6°
          Maximum turning angle ±0.015° ±0.01° ±30°
          Recession angle ±0.015° ±0.01° ±6°
          Tread ±0.25cm ±0.01° 3000mm
          Wheelbase ±0.25cm ±0.01° 8000mm
          diagonal ±2mm ±0.3cm 12000mm
          Rolling radius ±2mm ±0.3cm 700mm
          3.Standard accessories are as follows:
          Product accessory name Matching number Product accessory name Number of parts Remarks
          Aluminum alloy Liang Zongcheng 1 Cabinet, column assembly 1
          Aluminum alloy corner plate 2 Four point fixture 4
          Direction fixing bracket 1 Front and rear wheel stop 4
          Computer host 1 Monitor 1 18.5inch
          keybord, mouse 1 Whole wire harness 1
          Liang Zongcheng coupling 1 Column seat 1
          Column cap 1 Fixture hanger 4
          3 main features of the product

          0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

          0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

          0.3. Measurement accuracy in the industry first-class;

          0.4. Software supports a variety of reflective patterns;

          0.5. The product has passed ISO quality system certification and export CE certification;

          0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
          0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

          0.8. The software is easy to operate, easy to use, intuitive 3D display

          0.9. National UNPROFOR, remote service system

          10. All over the country are equipped with after-sales service outlets, remote technical support

          11. Regular return visit system of products, continuous innovation, once a year free update data packets

          12. The product is specially designed for the drainage design. It is convenient to check the data

          13) free training staff

          14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

          15. Automatic calculation of body parameters and rolling compensation body parameters

          16. Software intuitive response to the four round of the condition and need to solve the problem of repair
