          FSD-300S
          Loading...

          Product Name: Fushida Series Four-board Exchange Electric Lift Type 3D Four-wheel Positioning Instrument
          Model: 3D FSD-300s
          Three-dimensional vehicle four-wheel positioner;
          Origin: China - Zhuhai:
          Registered Trademark: Zhuhai Fushida (FSD-300s),

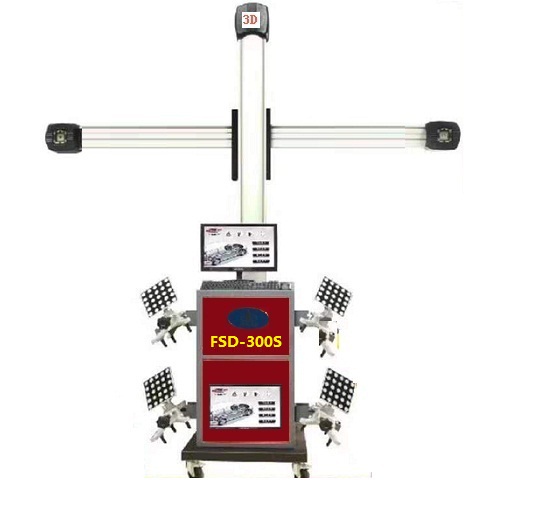

          The appearance pictures of the products are as follows: (the main color is red)
          Operating system: WIN8-32 bit legitimate operating system, Chinese and English language.
          This software is only a new product of the company's development projects. There are six software patents applied to software systems and operating systems.
          The operating aspects and patent certificates of the software are as follows:

          1. The main features of the product are as follows: fast inspection cart program, WIN8-32 bit operation system, four-point fixture hanging on both sides of the column, high strength aluminium alloy used in the column, and the aluminium alloy column is beautiful and generous. The cabinet adopts movable chassis, the pillar is easy to adjust and fix a certain height; the camera adopts Sony imported camera 5 million pixel lens system, processing picture speed 30 sheets per second; the reflector shell is made of aerospace aluminium alloy material, dynamic vision algorithm technology, software operation is simple and fast to read data; the three-dimensional dynamic display image operation guides the operation of rolling compensation; The standard four-point fixture can inspect 10-23 inch rim. The equipment maintenance is simple and does not need to be calibrated regularly. Aluminum alloy turntable is convenient to inspect parameters such as steering base parameters and front wheel beam inclination. Super database is updated once a year free of charge. The product is ISO quality body. It is certified by the European Union CE Security Certificate.
          2. Aluminum alloy beams are treated by full surface oxidation. The assembly includes two cameras, lamp board and lens system. Motors, gears and racks behind the pillars can control the movement of the beam up and down by computer and track the target plate conveniently.
          3. Main technical parameters of products
          Location parameter Accuracy (center value) Accuracy range Maximum measuring range
          Display accuracy and measurement accuracy ±0.01°/0.01mm Measurement repeatability±0.01°or0.01mm
          Toe ±0.015° ±0.01° ±30°
          Dip angle ±0.025° ±0.01° ±30°
          Kingpin inclination ±0.025° ±0.01° ±15°
          Kingpin inclination ±0.025° ±0.01° ±20°
          thrust angle ±0.015° ±0.01° ±6°
          Maximum turning angle ±0.015° ±0.01° ±30°
          Recession angle ±0.015° ±0.01° ±6°
          Tread ±0.25cm ±0.01° 3000mm
          Wheelbase ±0.25cm ±0.01° 8000mm
          diagonal ±2mm ±0.3cm 12000mm
          Rolling radius ±2mm ±0.3cm 700mm
          4. Standard accessories are as follows:
          Product accessory name Number of parts Product accessory name Number of parts Remarks
          Aluminum alloy Liang Zongcheng 1 Cabinet, column assembly 1
          Aluminum alloy corner plate 2 Four point fixture 4
          Direction fixing bracket 1 Front and rear wheel stop 4
          Computer host 1 Monitor 2 2-19“
          Keyboard, mouse 1 Whole wire harness 1
          Liang Zongcheng coupling 1 Column seat 1
          Column cap 1 Fixture hanger 4

          5. Main features of products
          0.1). The camera has fast reaction speed, good cryogenic performance, and can work at low temperature of about 30 degrees below zero. The pushing time is only 3S, and the camera speed is 30 photos per second.
          0.2). Reflector beyond visual range, can find targets within 12 meters or so, can be used to lengthen vehicle detection;
          0.3). The measurement accuracy is first-class in the industry.
          0.4). The software supports a variety of reflective patterns.
          0.5). The products are certified by ISO quality system and CE certification for export to EU.
          0.6). The key parts, reflective plate and camera cover, are manufactured by professional moulding of ABS materials, which ensures the quality of the products.
          0.7). The computer is equipped with a 3D operating video screen, which is easy to operate. It has the function of self-installation and operation guide.
          0.8). The software is simple to operate, easy to use and intuitive 3D display.
          0.9). National Joint Insurance and Teleservice System.
          10. All over the country, there are after-sales service outlets with long-distance technical support.
          11. Regular product return visit system. Continuous innovation, annual data free update data package.
          12. The product is specially designed for trench type display to facilitate data viewing.
          13. Free training for workers.
          14. Dynamic calculation of body parameters is not affected by lift roughness.
          15. Automatically calculate body parameters and rolling compensation body parameters.
          16. The software visually reflects the condition of four-wheeled vehicles and the repair problems that need to be solved.
