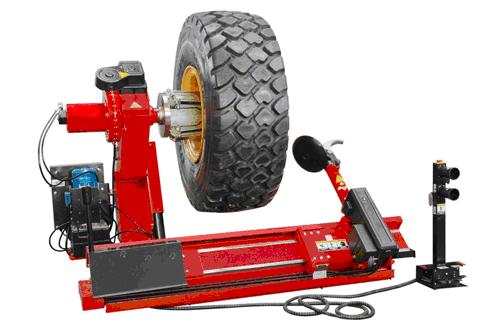

MODEL：FSD-T980

  T980 SUPER TRUCK TYRE CHANGER HAS BEEN SPECIFICALLY DESIGNED TO MOUNT

      AND DEMOUNT TRUCK、BUS、TRACTORS AND EARTHMOVING VEHICLES TYRES RIM

      CAPACITY 14"-56",  BI-DIRECTIONAL CHUCK WITH 2ROTATIONAL SPEEDS.



   ●  TECHNICAL DATA



                 Rim capaciyt                                               14"-56" with extensions

          Max.wheel diameter                                    2500mm

                 Max.wheel width                                          1200mm

                 Max.wheel weight                                         2000kg

                 Machine weight approx                                1145kg

                 Gear box motor                                            2.4/3.0kW

                 Hydraulic unit motor                                     2.4/3.0kW

                 Power supply                                                400V 3Ph 50Hz

                 Gross weight                                                1300kg

                 Outside dimension (L×W×H)                             2310×2080×1100mm





     ●  OPTIONAL ACCESSORIES

Alu Alloy Rims Protection Rings





     ●  STANDARD ACCESSORIES

  56"Extension Chucks
