FSD-TY008

TY008IS AN ELECTRO HYDRAULIC TYRE CHANGER FOR TRUCK、BUS AND

        TRACTORS; EQUIPMENT WITH A SOUNDPROOFED POWER GENERATOR;

        TY008CAN BE RUN ON THE WORKSHOP AND SUITABLE FOR MOBILE SERVICE.



    ●  TECHNICAL DATA



                 Rim capacity                                              14"-26"

          Max.wheel diameter                                    1300mm

                 Max.wheel width                                           600mm

                 Max.wheel weight                                         700kg

                 Bead breaker force                                      2500kg

                 Gear box motor                                            1.1kW

                 Hydraulic unit motor                                     1.1kW

                 Power supply                                                220/400V 1/3Ph 50/60Hz (Optional)

                      Gross weight                                                 580kg

                 Outside dimension (L×W×H)                             150×1000×1550mm

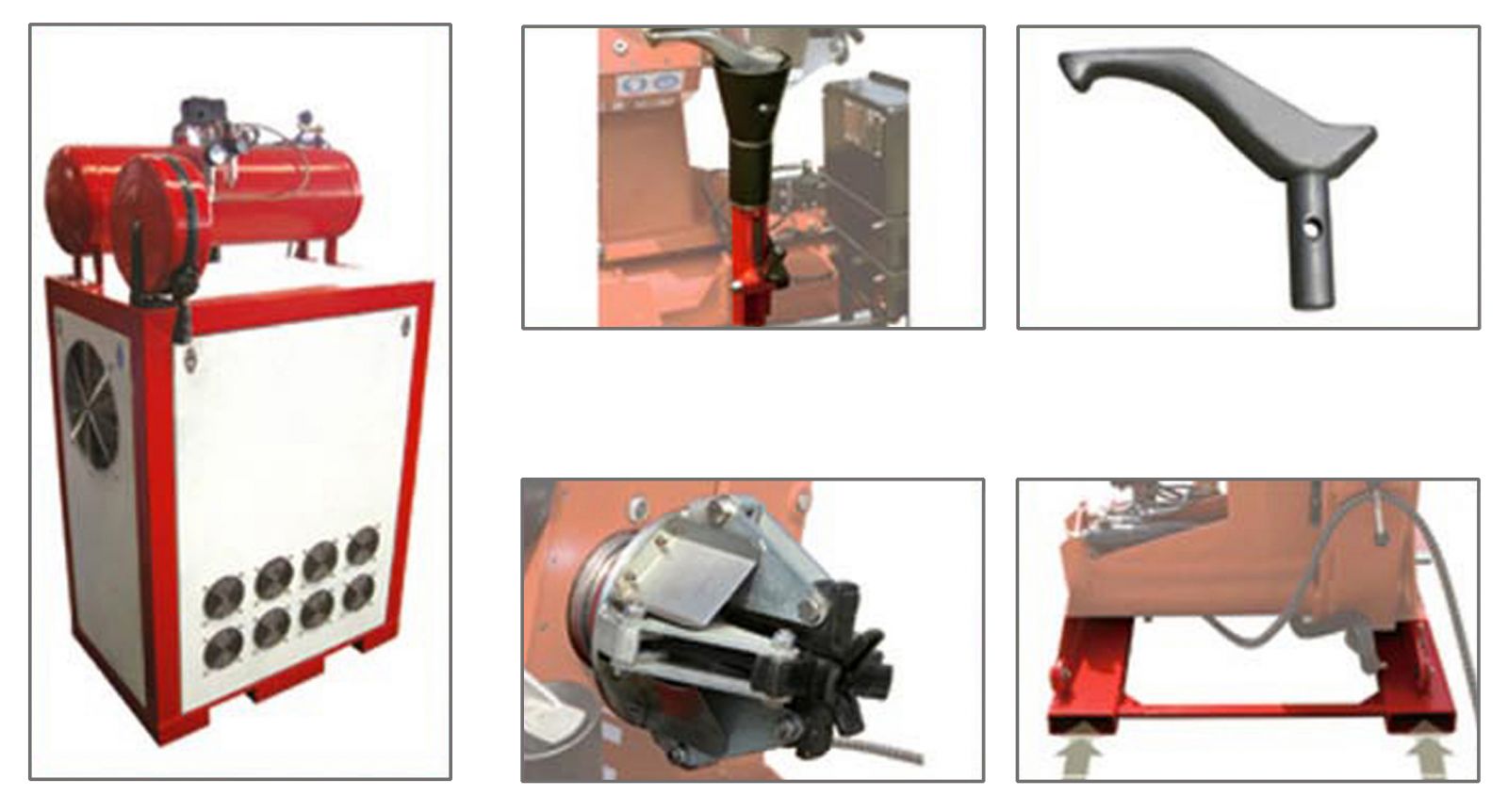

    ●  OPTIONAL ACCESSORIES

 ●  OPTIONAL ACCESSORIES



Alu Alloy Rims Protection Rings





    ●  STANDARD ACCESSORIES
