          FSD-ZHZY300M
          Loading...

          Product Name: 32-inch Large Screen Double Screen Display Fushida (FSD) Series 3D Four Wheel Positioning Instrument
          Model: 3D ZHZY-300M
          Three-dimensional vehicle four-wheel positioner;
          Origin: China-Zhuhai:
          Registered Trademark: Zhuhai Battle Eagle (ZHZY),

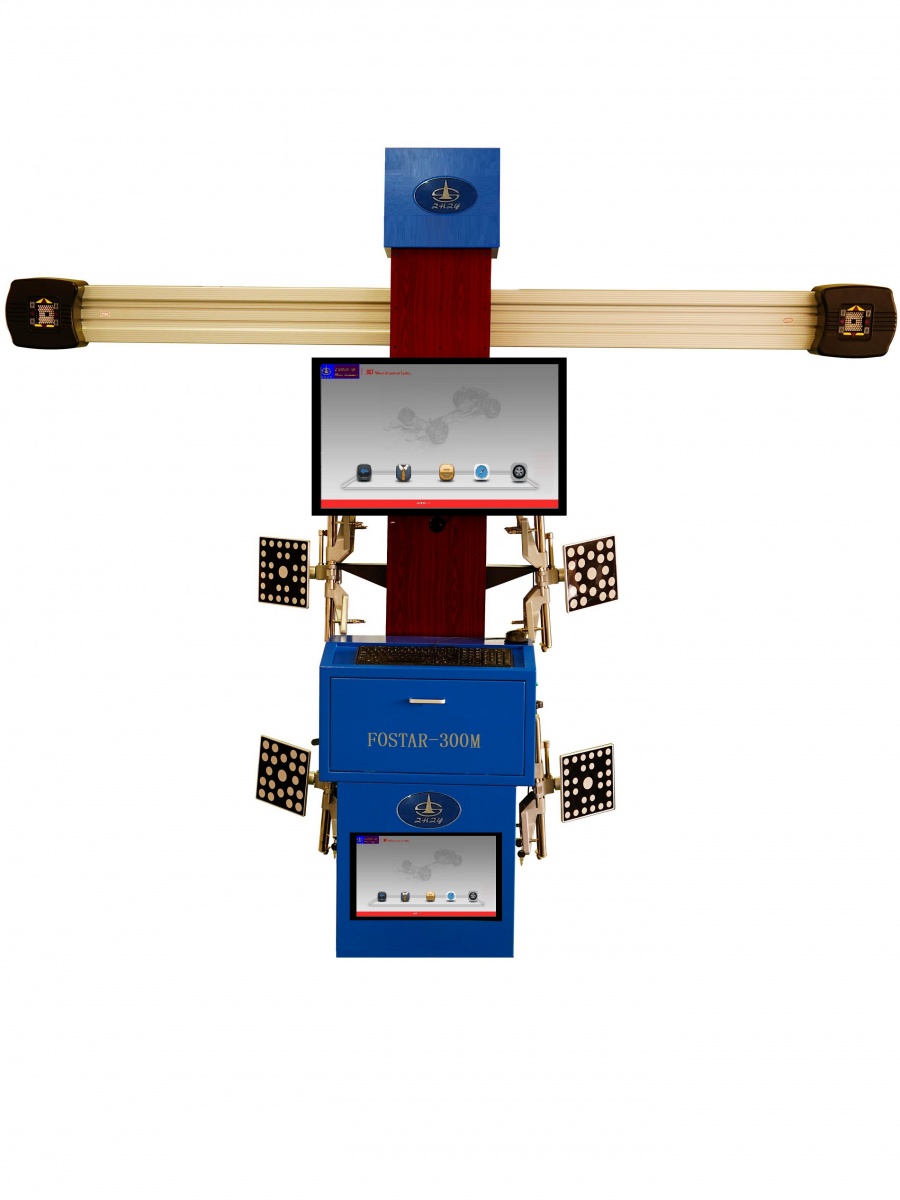

          The product appearance pictures are as follows: (main color blue cabinet, mahogany furniture color aluminum alloy column)
          Authentic WIN7-64 bit operating system, 22 languages.

          1. Product structure characteristics: Aluminum alloy square as pillar, surface oxidation into mahogany furniture color, aluminum alloy beams using all aluminum alloy oxidation treatment, cabinet column integrated fixed design, imported Sony camera, HDMI data high-definition display. Lenovo Brand Computer: 64-bit operating system to ensure the permanent stability of the system, dual-core CPU more than 3.0G, 4G memory 60G solid-state hard disk. 32-inch super-large double screen display.
          2.The main technical parameters of the product are as follows:
          Location parameter Accuracy (center value) Accuracy range Maximum measuring range
          Display accuracy and measurement accuracy ±0.01°/0.01mm Measurement repeatability±0.01°or0.01mm
          Toe ±0.015° ±0.01° ±30°
          Dip angle ±0.025° ±0.01° ±30°
          Kingpin inclination ±0.025° ±0.01° ±15°
          Kingpin inclination ±0.025° ±0.01° ±20°
          thrust angle ±0.015° ±0.01° ±6°
          Maximum turning angle ±0.015° ±0.01° ±30°
          Recession angle ±0.015° ±0.01° ±6°
          Tread ±0.25cm ±0.01° 3000mm
          Wheelbase ±0.25cm ±0.01° 8000mm
          diagonal ±2mm ±0.3cm 12000mm
          Rolling radius ±2mm ±0.3cm 700mm
          3.Standard accessories are as follows:
          Product accessory name Matching number Product accessory name Number of parts Remarks
          Aluminum alloy Liang Zongcheng 1 Cabinet, column assembly 1
          Aluminum alloy corner plate 2 Four point fixture 4
          Direction fixing bracket 1 Front and rear wheel stop 4
          Computer host 1 Monitor 2 32/19inch
          keybord, mouse 1 Whole wire harness 1
          Liang Zongcheng coupling 1 Column seat 1
          Column cap 1 Fixture hanger 4
          4.main features of the product
          0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

          0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

          0.3. Measurement accuracy in the industry first-class;

          0.4. Software supports a variety of reflective patterns;

          0.5. The product has passed ISO quality system certification and export CE certification;

          0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
          0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

          0.8. The software is easy to operate, easy to use, intuitive 3D display

          0.9. National UNPROFOR, remote service system

          10. All over the country are equipped with after-sales service outlets, remote technical support

          11. Regular return visit system of products, continuous innovation, once a year free update data packets

          12. The product is specially designed for the drainage design. It is convenient to check the data

          13) free training staff

          14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

          15. Automatic calculation of body parameters and rolling compensation body parameters

          16. Software intuitive response to the four round of the condition and need to solve the problem of repair
