          Name: Zhuhai of the touch-screen 3D four wheel aligner
          Model: 3D ZHZY -300P
          Four wheel alignment instrument; a genuine WIN7-64 operating system, six languages support.
          Origin: China - Zhuhai
          Registered trademark: Zhuhai hawk (ZHZY-300P),

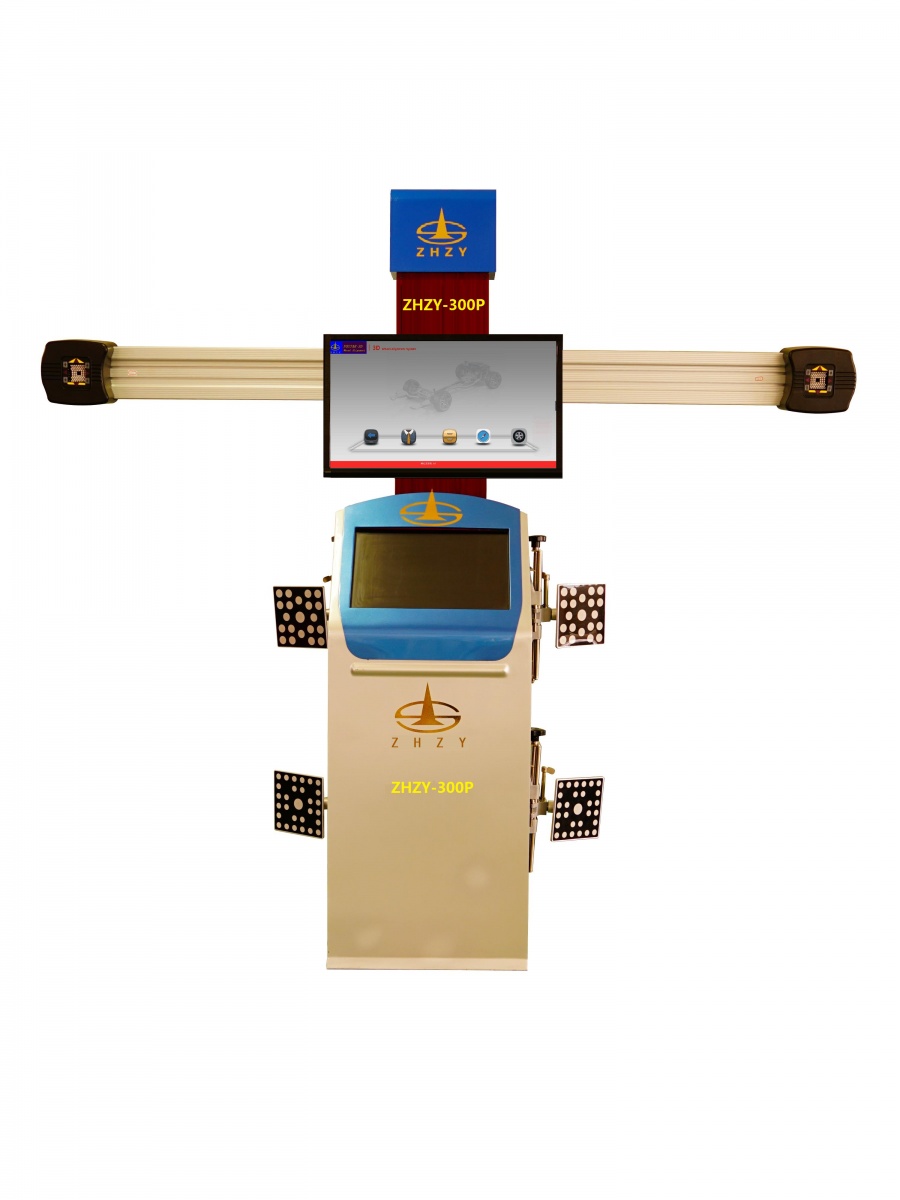

          The product appearance picture is as follows: (following is the material picture)
          1., products are different from other models, mainly touch screen type, 22 "large display integrated chassis," the exclusive production of the country, aluminum alloy column stands tall. The cabinet adopts movable column height adjustable chassis, convenient fixed height; the camera uses SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual software algorithm technology, simple operation, fast read data; 3D dynamic image display operating guidelines guide roll compensation, the amount of operation; short distance micro cart, wheelbase and track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular calibration; Aluminum Alloy angle disc facilitate inspection direction based parameters and the front wheel angle and other parameters; super database, free for a year to update the database file at a time; the products by ISO quality system and the European CE safety certification.
          2. aluminum alloy beams are treated by full surface oxidation. The assembly consists of two cameras, a light plate and a lens system. The columns are manually mounted and adjustable at different heights.
          3. main technical parameters of products
          Location parameter Accuracy (center value) Accuracy range Maximum measuring range
          Display accuracy and measurement accuracy ±0.01°/0.01mm Measurement repeatability±0.01°or0.01mm
          Toe ±0.015° ±0.01° ±30°
          Dip angle ±0.025° ±0.01° ±30°
          Kingpin inclination ±0.025° ±0.01° ±15°
          Kingpin inclination ±0.025° ±0.01° ±20°
          thrust angle ±0.015° ±0.01° ±6°
          Maximum turning angle ±0.015° ±0.01° ±30°
          Recession angle ±0.015° ±0.01° ±6°
          Tread ±0.25cm ±0.01° 3000mm
          Wheelbase ±0.25cm ±0.01° 8000mm
          diagonal ±2mm ±0.3cm 12000mm
          Rolling radius ±2mm ±0.3cm 700mm
          3.Standard accessories are as follows:
          Product accessory name Matching number Product accessory name Number of parts Remarks
          Aluminum alloy Liang Zongcheng 1 Cabinet, column assembly 1
          Aluminum alloy corner plate 2 Four point fixture 4
          Direction fixing bracket 1 Front and rear wheel stop 4
          Computer host 1 Monitor 2 32/22inch
          keybord mouse 1 Whole wire harness 1
          Liang Zongcheng coupling 1 Column seat 1
          Column cap 1 Fixture hanger 4
          3 main features of the product

          0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

          0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

          0.3. Measurement accuracy in the industry first-class;

          0.4. Software supports a variety of reflective patterns;

          0.5. The product has passed ISO quality system certification and export CE certification;

          0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
          0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

          0.8. The software is easy to operate, easy to use, intuitive 3D display

          0.9. National UNPROFOR, remote service system

          10. All over the country are equipped with after-sales service outlets, remote technical support

          11. Regular return visit system of products, continuous innovation, once a year free update data packets

          12. The product is specially designed for the drainage design. It is convenient to check the data

          13) free training staff

          14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

          15. Automatic calculation of body parameters and rolling compensation body parameters

          16. Software intuitive response to the four round of the condition and need to solve the problem of repair
